TORP TC500 2.X Controller kit for Talaria MX5

Boost the power of your Talaria  MX5 with the TC500 controller.

The new  generation TC500 2.X controller comes with integrated launch and lift assist hardware enabling advanced stability control for perfect wheelies and enhanced riding dynamics (Available via App update by Mid-February 2026), while automotive-standard throttle support and over-current protectionsafeguard performance. Next-generation components keep it resilient and reliable ride after ride.

Experience a 30% boost in power and torque with the Torp TC500 Controller for your Talaria MX5. Enjoy up to 17 kW of peak power on the stock battery, or opt for a 72V aftermarket battery for even more flexibility and up to 20kW of power with the stock motor.

Installation is simple, and performance tuning is easy with the Torp App. All stock Talaria features—such as the display, kick-stand sensor, crash sensor, power mode button, and brake switch—are retained, with the only exception being the start button.

Important: The TC500 controller kit for Talaria MX5 comes with the Torp thumb throttle! Please follow the special installation instructions.

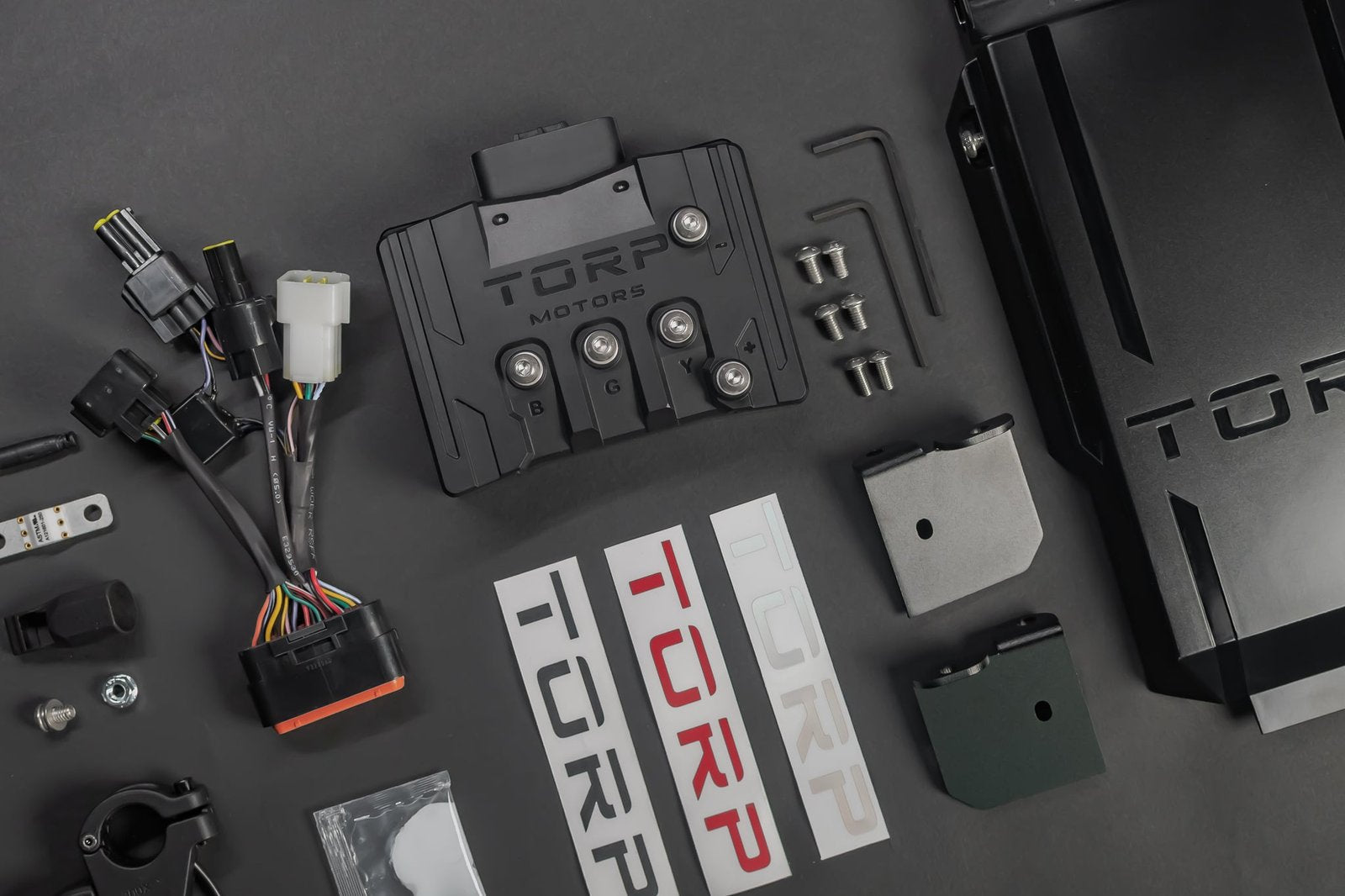

INCLUDED IN THE PACKAGE:

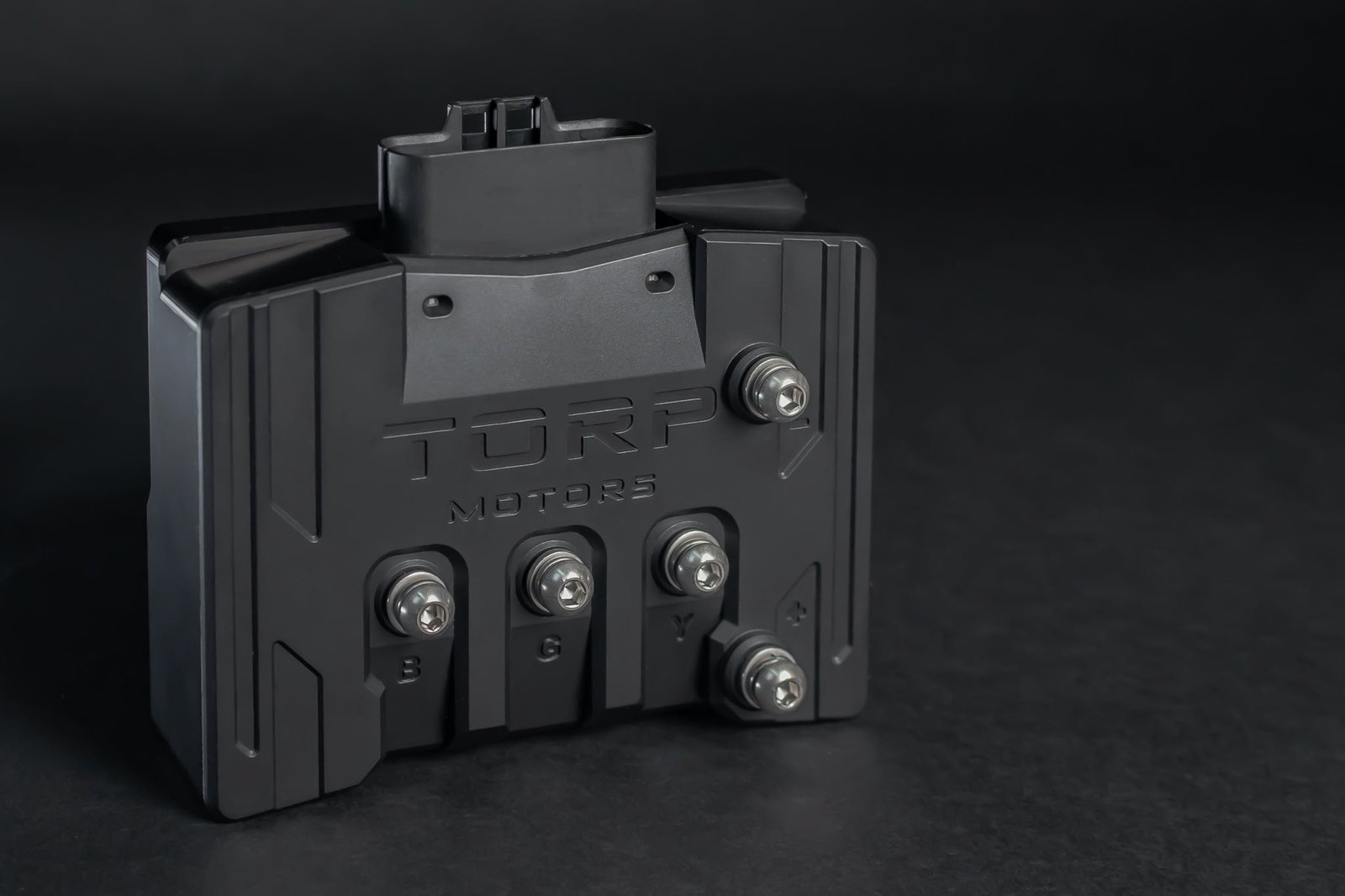

-1x TC500 Controller

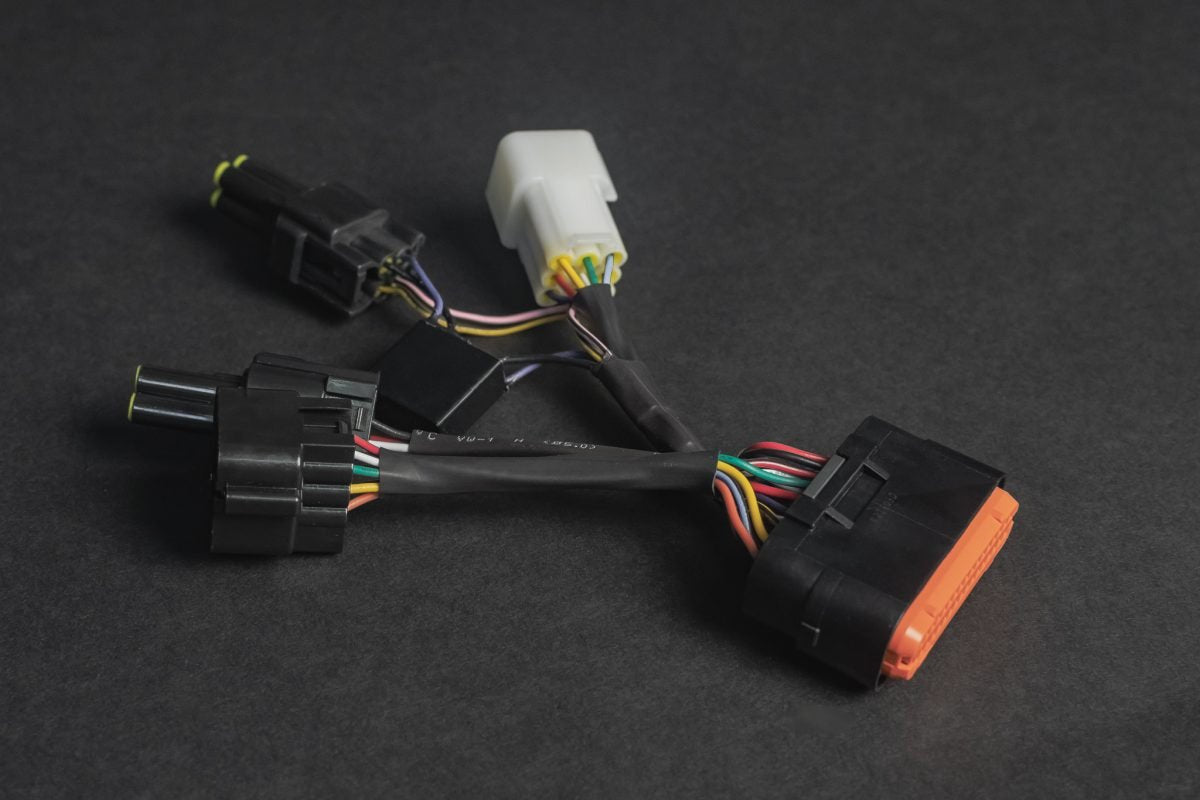

-1x wire harness

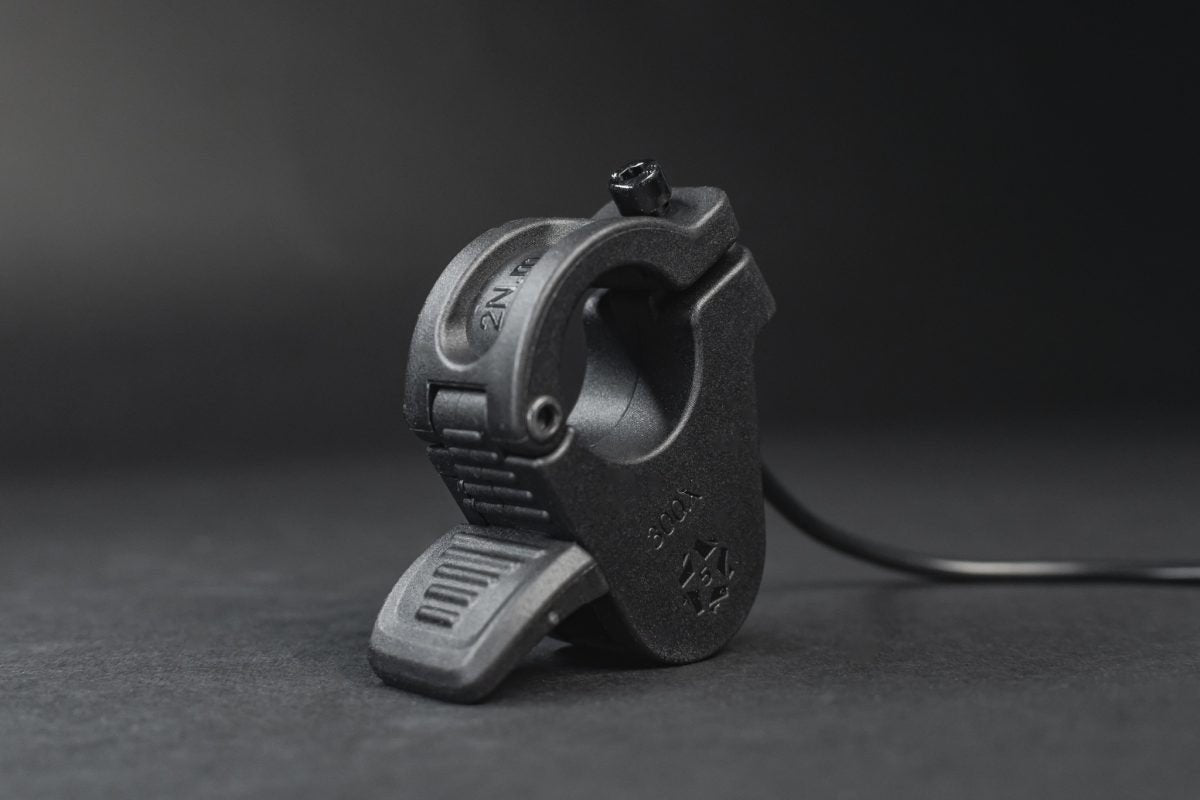

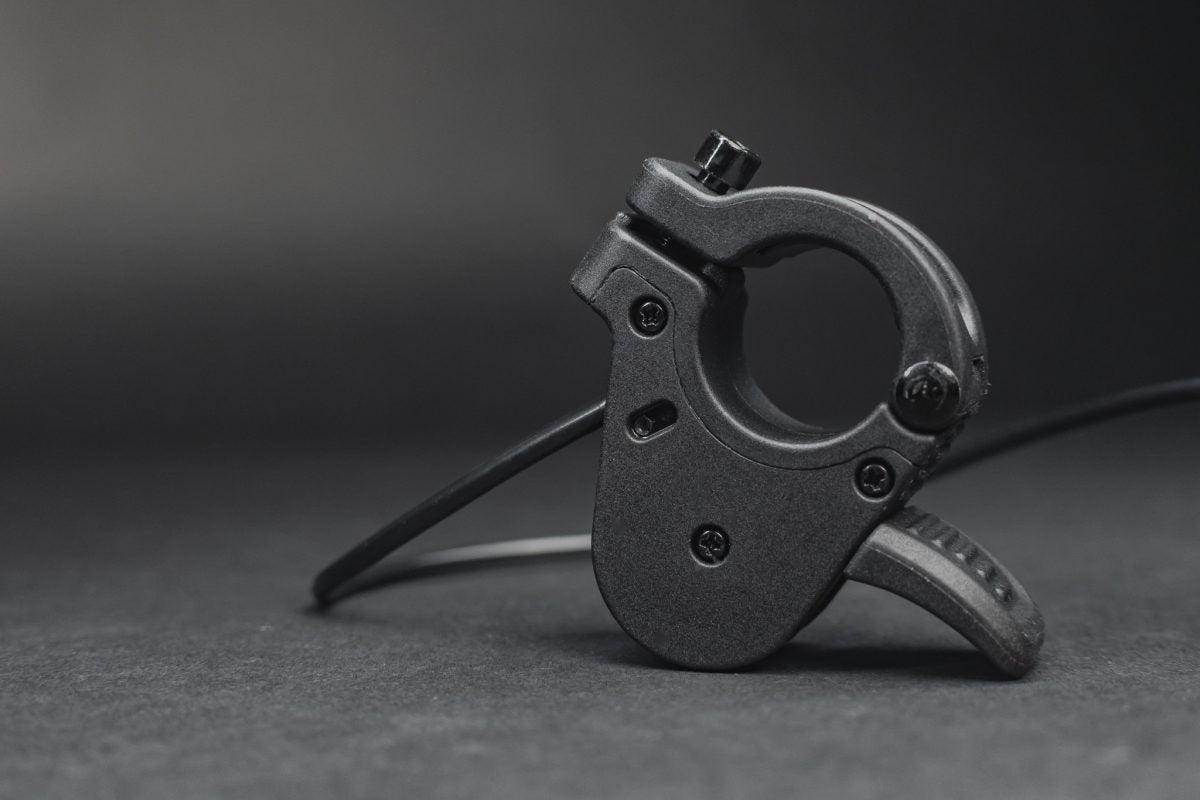

-1x thumb throttle
-1x fuse with a plastic protection
-1x connector cover

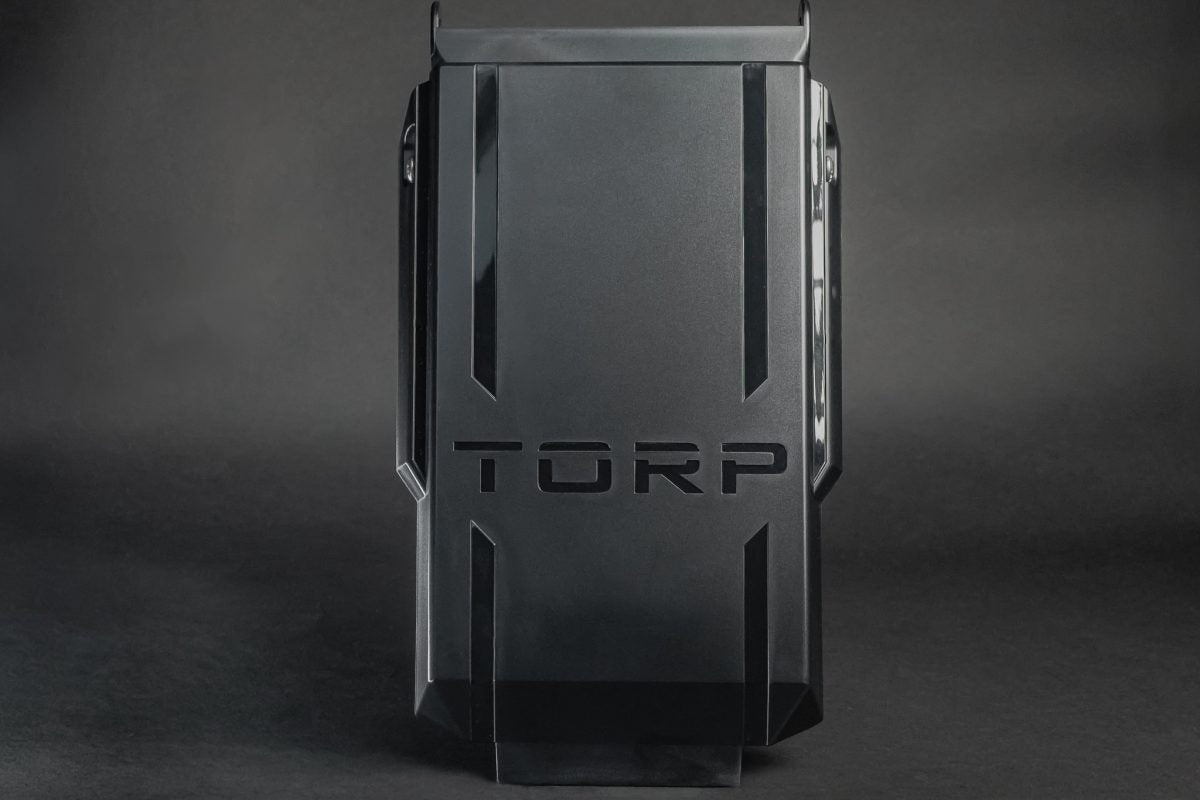

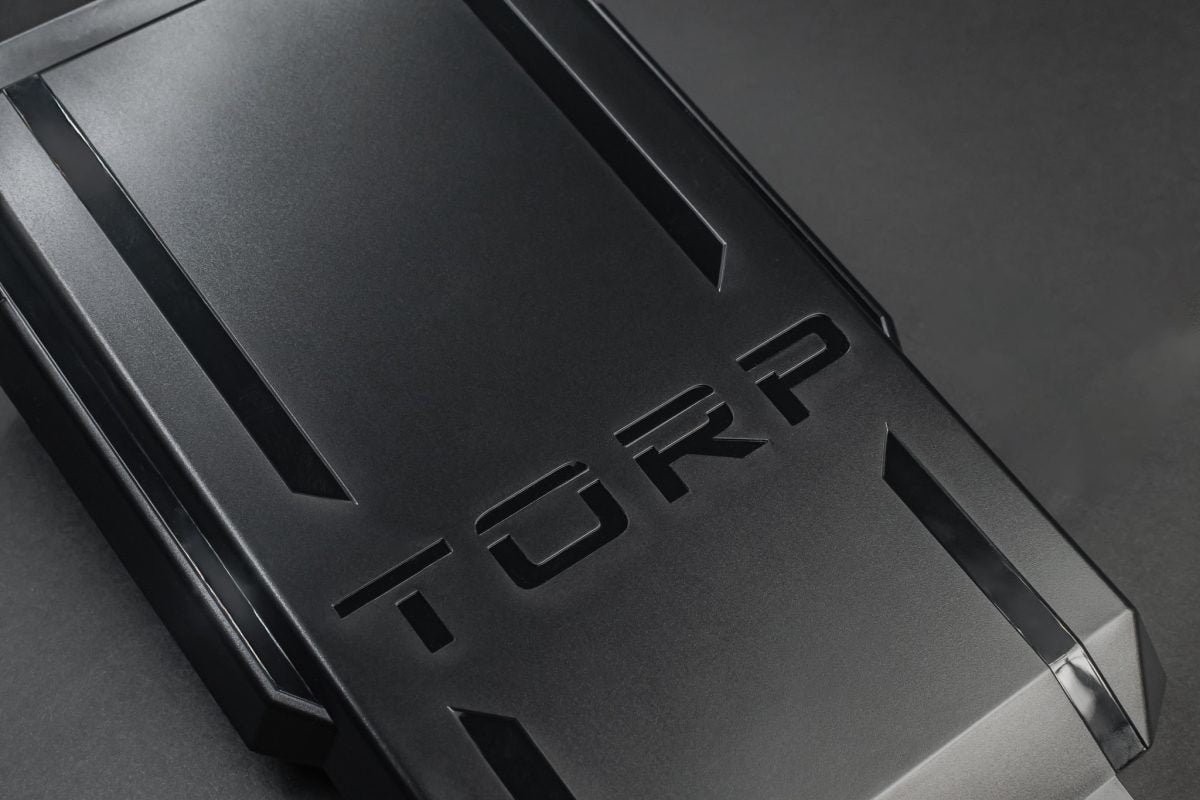

-1x plastic shield
-bolts and tools needed for installation

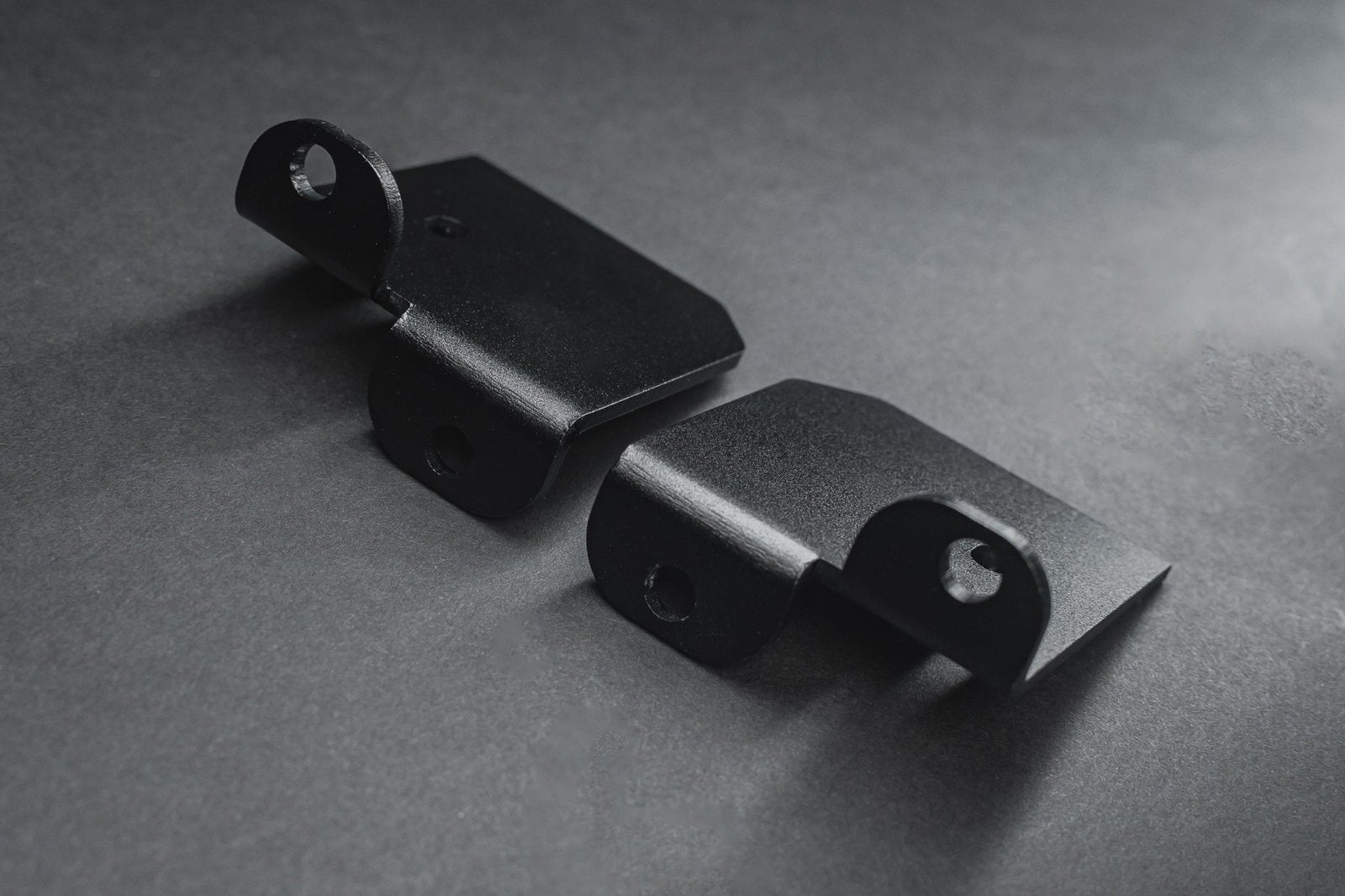

-2x installation brackets
-4x stickers
-1x pack of silicone grease
-short instructions

SPECIFICATIONS:

-Field-oriented control (FOC)
-Supported batteries: Supported batteries: from 60V up to 80V nominal 22S ( 92,4V fully charged)
-Max Power: 25kW
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 700 A

Important: Currently the controller CAN NOT communicate with the stock Talaria battery produced by SCUD. Please read before purchasing. Other controller functionalities are intact.

-Max phase current: 500 A
-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: Easy calibration through mobile app
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 1,3kg
-Features: Mobile App (IOS & Android), stock SurRon display
-Protection class: IP67*
-Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.
