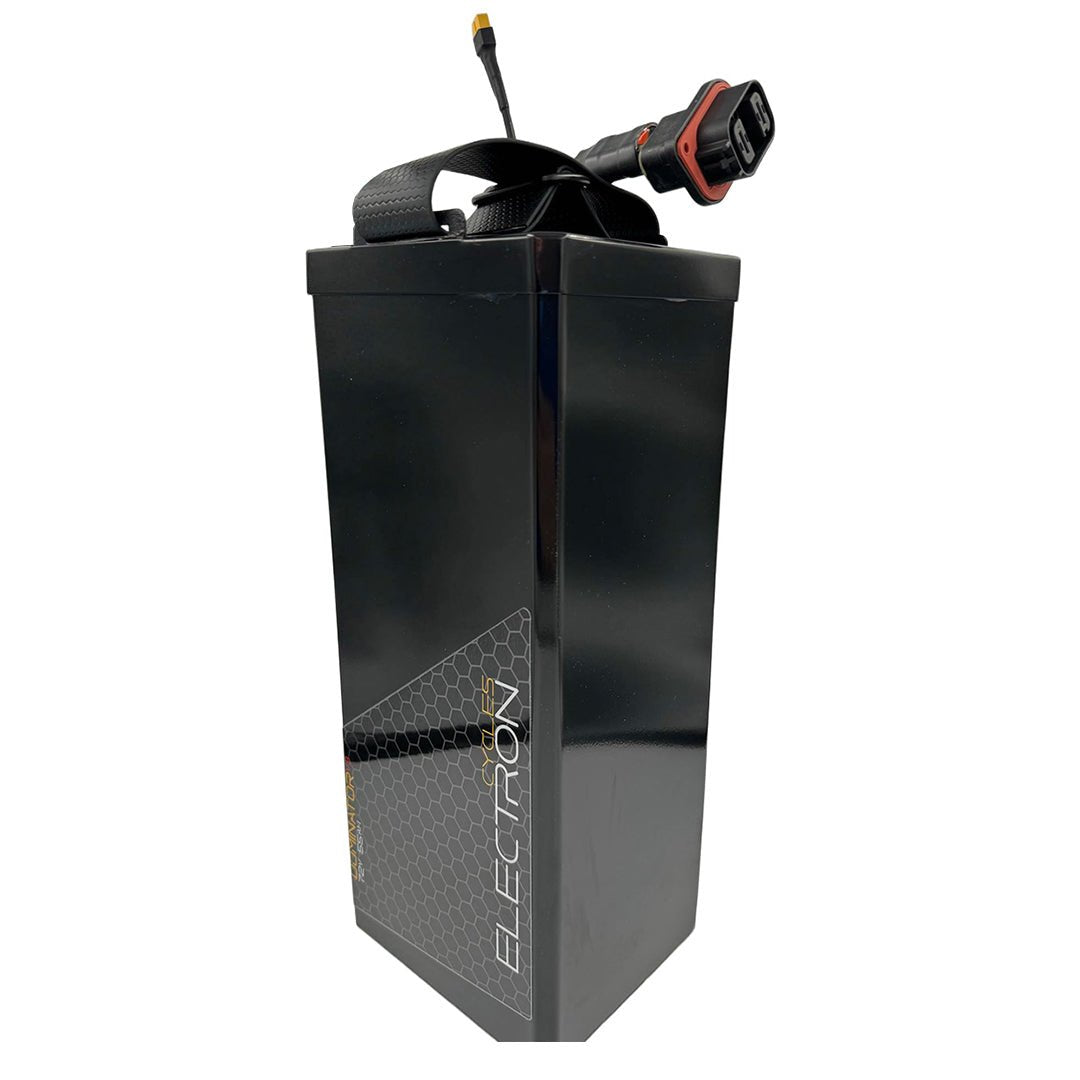

Talaria 72v 55Ah Dominator Upgrade Battery 9C

Includes Charger

Works with STD MX Controller!

More Volts Equals: More RPM

High Power Long Range 4070Wh
Samsung 50s 21700 Cylindrical Cells
Tough Protective 316 Stainless Steel Case
Fully Protected BMS

Power: Very High (32Kw)
Range: Very High (3960Kwh 264% Over OEM)
Height: Tall (375mm – needs 3mm spacer – provided or seat lift or new lid)

Battery Activation Required On Delivery

On delivery, please send us a request to have your battery activated.
This will also be regarded as confirmation that your battery has been received.

Description

Talaria 72v 55Ah Dominator Upgrade Battery 9C is capable of peak 32kW power ( peak discharge for 51 seconds until cut off on mosfet temp protection).

16kW continuous at 250A discharge runs for 4 minutes and 16 second continuous load until cut off on mosfet temp protection.

Riding Range: 181.5 km (laboratory result measured at the average speed of 25 km/h)

Battery Pack: Grade A 220 * 21700 Cells (Samsung 50S, volts difference less than 0.01V after 10,000Ah cycles)

Battery Cell Lifespan: Minimum 70% of capacity after 3 years

Standard Power: 19.2 kW/ 250A

Peak Power: 32kW/250A Peak (550A peak BMS for 11 seconds set to 400A peak for this battery)

Voltage Drop: Battery voltage drops 6V at 250A

Cells

There are 220 cells in this battery and all have internal resistance. The more resistance, the more heat they produce, until they start to damage. So with this low resistance, they are able to supply enormous amounts of power without over heating.

Power

This is a Talaria 72v 55Ah Dominator Upgrade Battery 9C paeeking at 32Kw and continiouse at 18kw

Exoskeleton /Casing

We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.

Connectors

The main Talaria 72v 55Ah Dominator Upgrade Battery 9C battery to controller and battery to bike connectors is the same as the standard  heavy duty 6 AWG cable. This allows higher power flow and less resistance than a standard cable.

Domestic Electrics

This means all your bike accessories are still powered. Some believe that not using the circuit breaker direct to the controller removes the safety of the circuit breaker. However, all our batteries have a full working BMS. Any power shorts or irregular current and the BMS shuts down.  This is much more sensitive and accurate than a mechanical breaker (you may note, for example that the Sur Ron Ultra Bee does not use a circuit breaker and relies on the BMS alone).

Specifications for Talaria 72v 55Ah Dominator Upgrade Battery 9C

Cell Specifications

Battery Compartment Lids or Lifting Kits

Because of the extra battery height (375mm) minor modification will needed to your bike.

There are several options:

#1 Fit an aftermarket battery compartment lid – there are several available on the market

#2 Remove the battery plastic base tray in the bike (simply remove the 5 small allen key bolts from the top looking down) and fit our 5mm spacer between the metal battery lid catch and the lid (spacers provided)

#3 Seat Lift Kit option: https://www.electroncycles.co.uk/product/talaria-mx-seat-lift-kit-black-full-e-charged/

Battery Charging

First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a “Connection Spark”.  Always charge your battery in a safe place and never unsupervised.

Charger Included

This Battery will not work with an original standard Talaria MX5 Controller

*Bike Not Included
