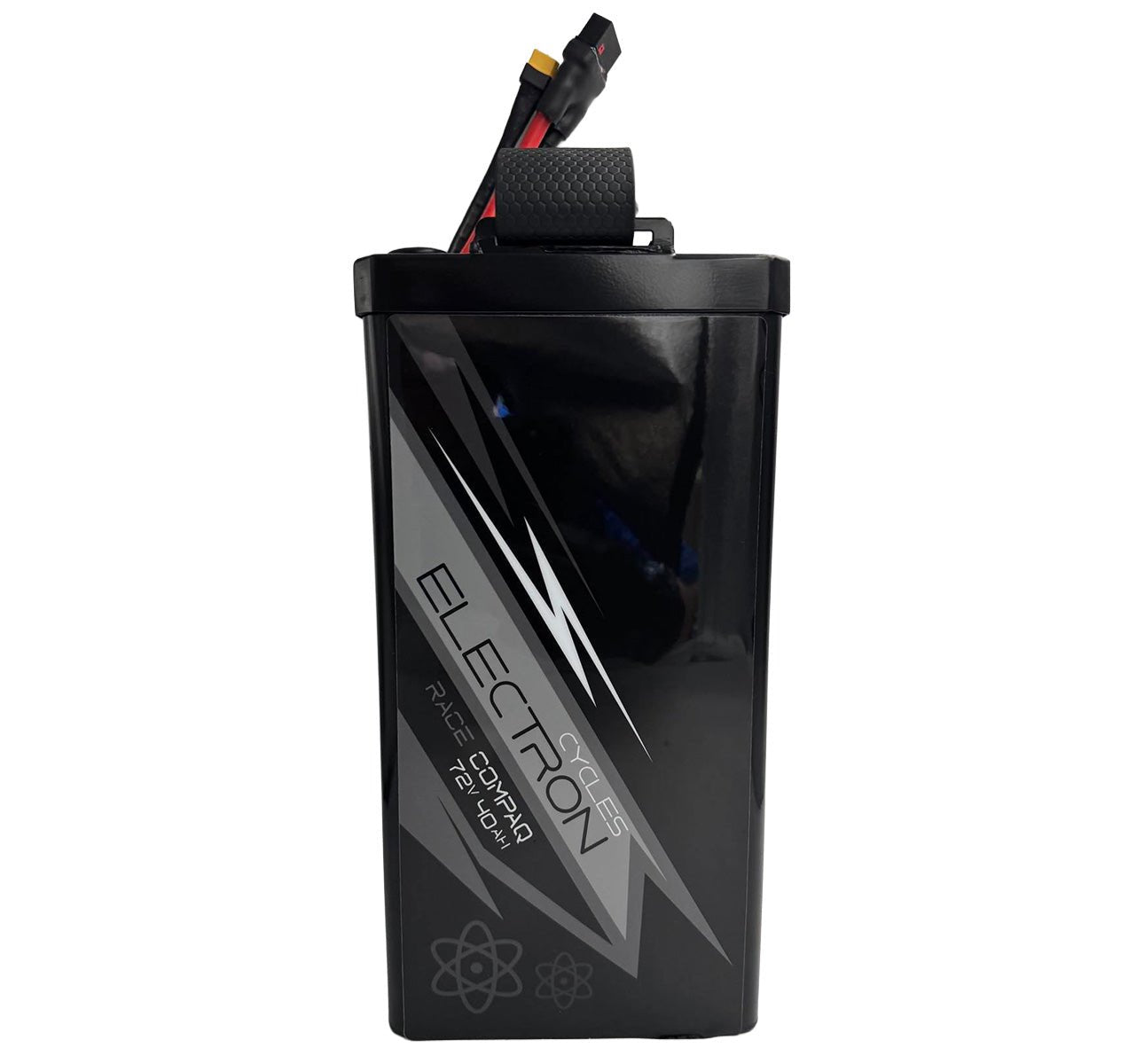

Sur Ron Battery 72v 40Ah Race Compaq 32.5Kw + Charger
€1.999,00
Sale price
€1.999,00
Regular price
Skip to product information
Direct Size Fit, Fast, Light, Powerful
Power: Very High (32.5KW)
Sur Ron Battery 72v 40Ah Race Compaq 32.5Kw + Charger
€1.999,00
Sale price
€1.999,00
Regular price
Taxes included.
Sur Ron Battery 72v 40Ah
Race Compaq
High Power Battery 32.5Kw
Direct Size Fit, Fast, Light, Powerful
Power: Very High (32.5KW)
Range: High (2880)
Height: Low (310mm – direct Fit)
Battery Activation Required On Delivery
On delivery, please send us a request to have your battery activated.
This will also be regarded as confirmation that your battery has been received.
Sur Ron Battery 72v 40Ah Race Compaq 32.5Kw + Charger is built for agilty and power. The short circuit racer and stuntman’s perfect weight and size battery.
Sur Ron Battery 72v 40Ah Race Compaq 32.5Kw + Charger as it is light and powerful and now with even more upgrades: upgraded internal configuration, upgraded high power BMS, new handle, new graphics and full marine grade stainless steel 316 exoskeleton / casing.
Power
The nine Paralell cell configuration is capable of 550 amps and BMS restricted to 450Amps. 32.5kW power is easily achievable until BMS roll bakc kisks in. We have spent sevral months testinga nd evaulting the cell we are using and so confident we are extending our cell warranty to 18 months for this battery.
Exoskeleton / Casing
We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.
Connectors
The main battery to controller connectors we use are QS8 connectors of thicker 6AWG cables. The battery to bile to controler loom is included.
Fitting
The battery fits straight into the OEM bike frame. No need for spacers or hinges. But being 72v will need to fit our after market power loom to the controller via the trip switch fitting. Its a simple job, just swapping out the main red and black power cable.We include this free of charge.
Specifications Sur Ron Battery
Weight 15.5Kg
Cells 20s9p 21700 Molicel p45b equivalent, 60Ah continiuos discharg per per cell.
Bluetooth ANT BMS set at 450 Amps 32.5Kw Peak, 250A constant 18kW.
Full battery protection including over discharge (shorts) over heating etc.
Additional layers of fibre board, Kapton tape, heat shrink
Stainless steel 316 grade sealed casing/exoskeleton with internal/external powder coated to give maximum protection and insulation.
Double sandwich configuration using 0.2mm pure welded Nickle sheet.
Bluetooth BMS giving individual series condition with balanced charging and on/off function via a mobile device (we recommend always leaving on – never use SHUTDOWN)
An integrated cord handle for lowering the battery in and out.
Charging port via an XT60 connector.
Height 310mm
Connecting to Bike
When connecting the battery to the bike and to avoid a spark, turn the red trip switch on the bike to off. Connect the power cable and then turn the red trip to on.
Low power adapter included for those who do not want to change bike side loom – Max power 12Kw if used
Battery Charging
First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a “Connection Spark”. The battery needs a “Balance Charge” on first charge. Please charge for 12 hours first time. Always charge your battery in a safe place and never unsupervised.
72v (84v) 8A Charger Included
Upgraded charger for this battery is avaialabe here: https://electroncycles.com/product/charger-72v-84v-15a-for-large-batteries-suitable-for-72v-sur-ron-talaria-aftermarket-batteries/
This Battery will not work with an original standard Sur Ron Controller
*Bike Not Included
